M2Prime - FMS With AI
Solution for Engine & Fuel Monitoring Vessel
M2Prime is a product part of AISSAT Prime, a vessel monitoring system. Sometimes, knowing the position of a vessel is not enough. You could be needed the information from the vessel just like what presented on the dashboard, such as fuel, engine, or other parameters in a vessel. AISSAT M2 Prime would help you provide the solution.
Not only Track Vessels,
But Also Comes With Fuel & Engine Monitoring
Parameter:
Fuel Consumption Fuel Bunkering Fuel Tank Level RPM Main Engine, Secondary Engine & Auxillary
Fuel Supply Bypass Status Fuel Supply Maintenance Status Fuel Return Bypass StatusMain Box Alarm Flowmeter Box Alarm Tampering AlarmPower Disconnect Alarm Length of time on each of geofencing area

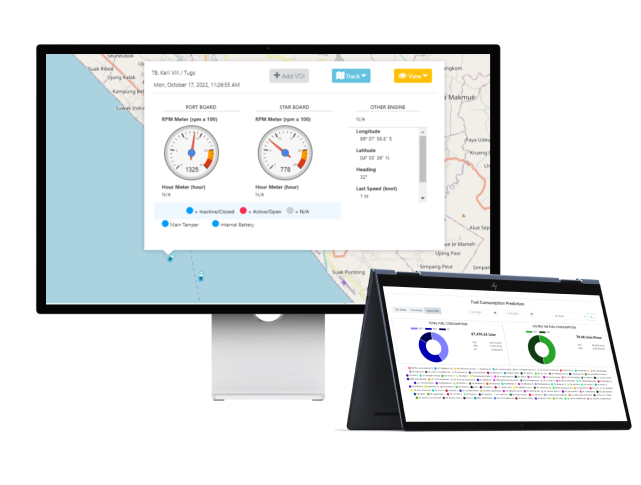

Software Spesification
Web Based Software
- Globally Accessible
- User Access Control (Admin, Operator)
- Redundancy Reliable Servers
- Linux Based Server
- Full Security Server
Data Processing
- Alert Display
- Geo-fence Area Configuration

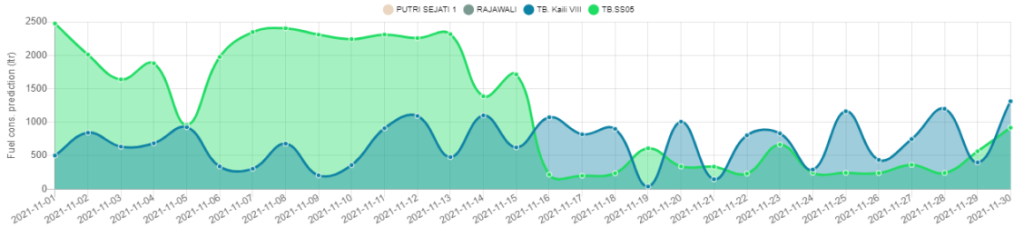

- Hourly, Daily, Monthly display of fuel usage, RPM and Data Sensors (optional)
Map Tracking Function
- Zoom In & Zoom Out
- Vessel location & Tracking
- Playback of Previous Vessel Position
- Support Offline Tracking in Google Earth
- View Raw Data Tracking
Document Export
- Export to excel or CSV document
- Auto Transmission Report: Email, SMS, FTP
- XML-Web-API (Application to Application)
We Developed The Hardware Ourselves
Hardware Specification
Core Module: M2Prime Module
- 5 Analog Input (DC Current 4-20 MA)
- 5 Analog Input (AC Current)
- 5 Analog Input (AC/DC Voltage up to 24V)
- 16 Digital Input
- 6 digital interrupt
- Up to 20 Relay output (Customize)
- SD Card 8 GB for up to 1 Year RPM Log data
- Wide Range Supply Input power 9–32 Volt
- RS-232
- RS-485 (Modbus)
Anemometer Sensor (optional)
- Anemometer sensor used for overview weather condition
Enclosure/Panel
- ATEX/Marine Standard
- IP-66 Standard (Dust Proof, Water Proof)
- Door Sensor/Tamper sensor
- Magnetic Sensor
- Battery
Satellite Modem
- Compatible with Multi Platform Satellite
- Compatible with Multi mode modem (GPRS, HSPA, Satellite)
Daily Tank Level Sensor
- Measure remain daily fuel tank level
Flow Meter Sensor
- Positive Displacement (PD) Flow meter
- Coriolis Mass Flow meter
- Turbine Flow meter
- Piston Flow meter
RPM Sensors
- Proximity Sensor (Not using existing RPM sensor)
- Tapping data from existing RPM Sensor Engine Status
- Auxiliary & Main Engine Hour Sensor
- Auxiliary & Main Engine ON/OFF detection

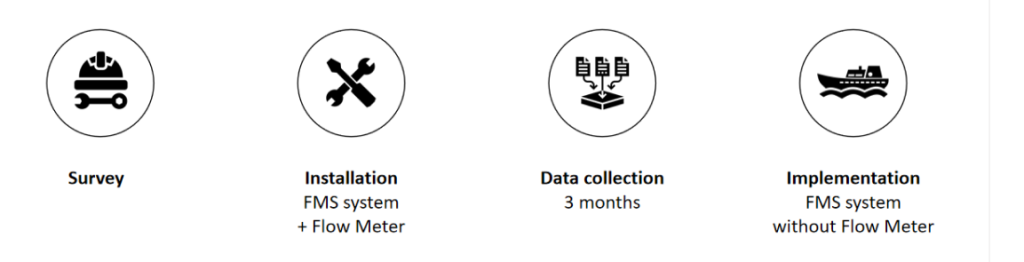

Step By Step Installation
